4D plus ML Multilayer Zirconia

Multi-dimensional gradient, ultimate aesthetics, our most outstanding product at honchon smile, contact us now for discount!

INQUIRY

Description

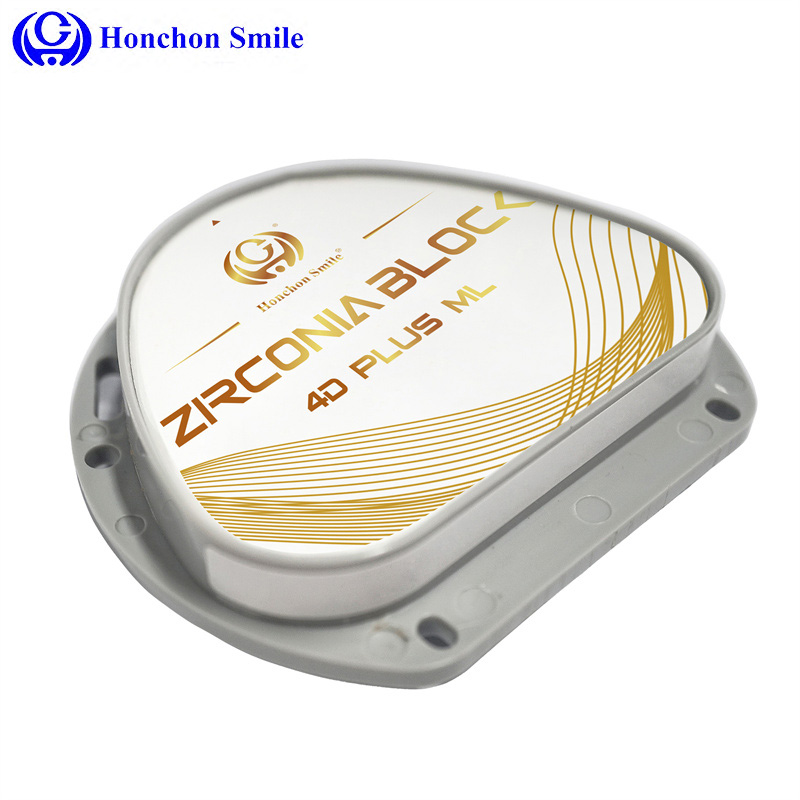

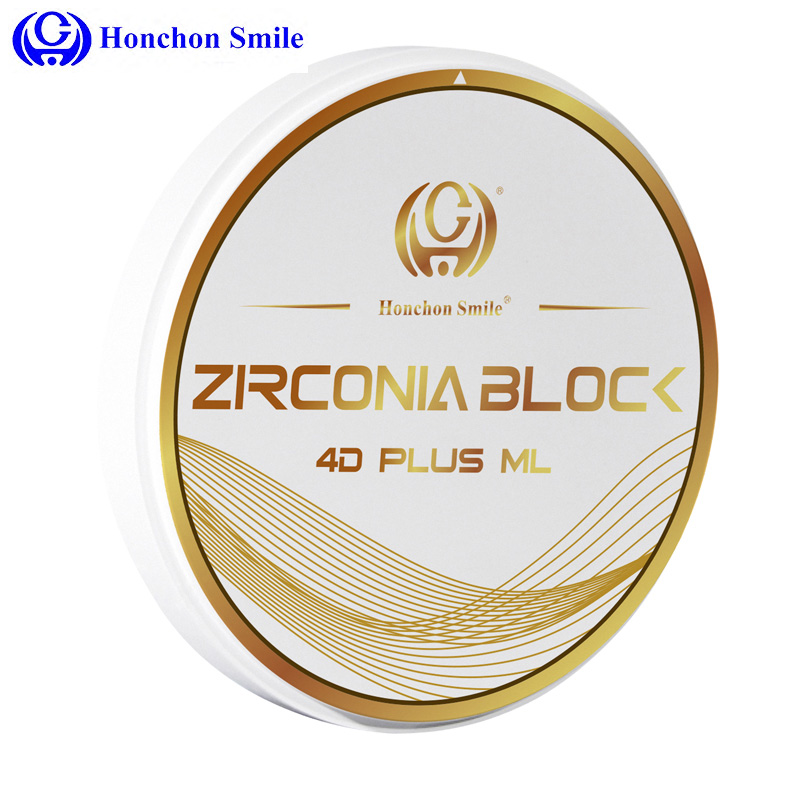

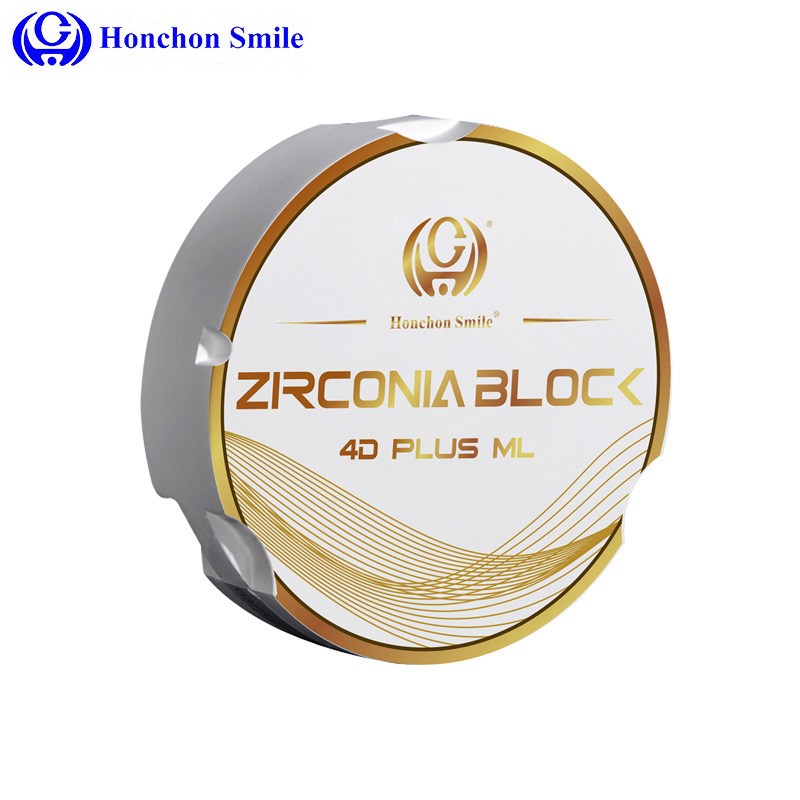

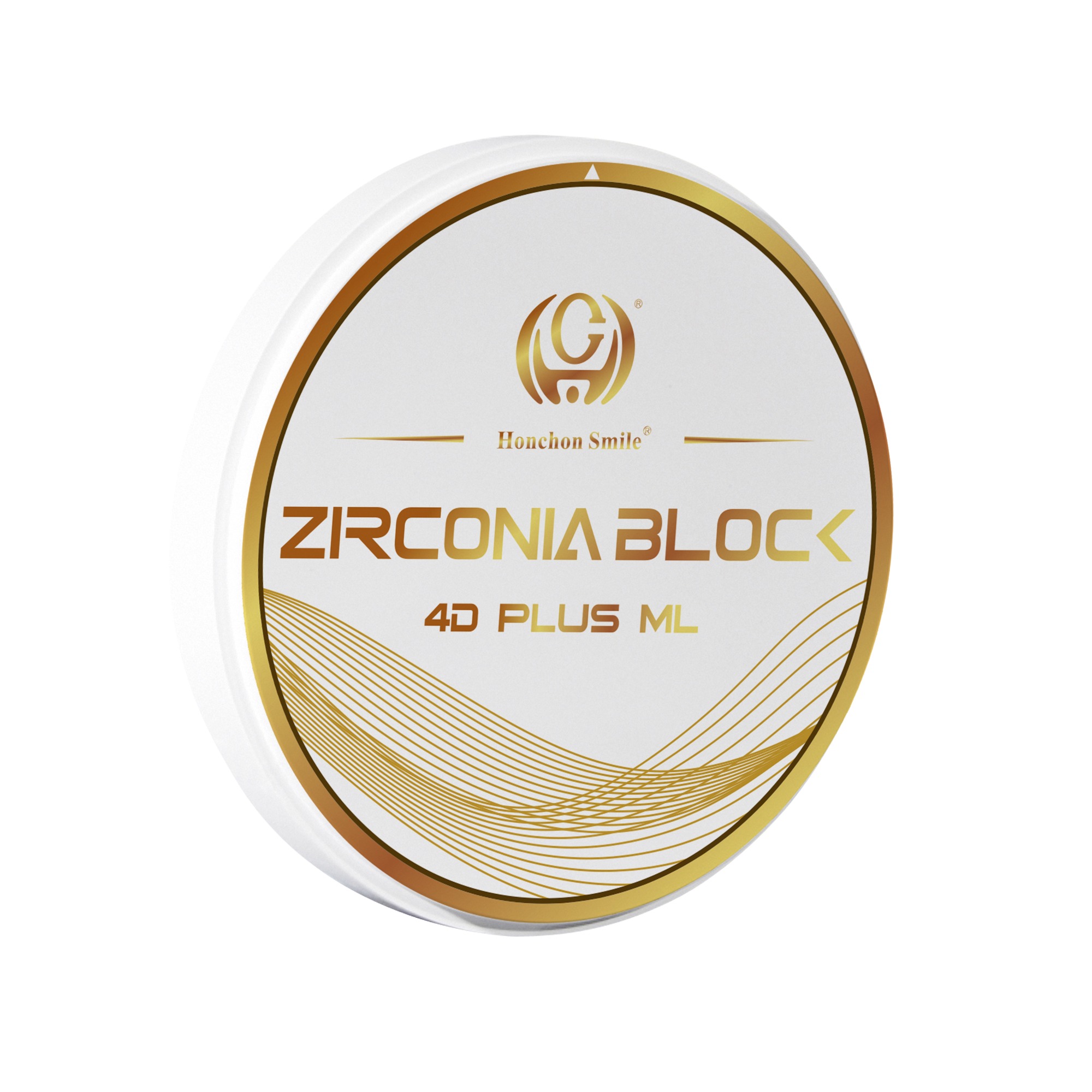

honchon smile’s 4D plus Multilayer zirconia block is the most high-end class zirconia block, the most nature zirconia block, which changes color(from dark to light), strength( from 700mpa-1200mpa), and translucency(43%-55%) gradually from cervical to incisal part at one zirconia disc.

This type of multilayer zirconia block can make both posterior teeth and anterior teeth. One zirconia block to cover all indications.

It impresses with its perfect balance between translucency and strength for the production of aesthetic all-ceramic restorations. The soft material before sintering ensures an effortless manufacturing process.

Add WhatsApp Contact Now

2.product Parameter (specification)

Color	BL1 BL2 BL3 BL4 A1 A2 A3 A3.5 A4 B1 B2 B3 B4 C1 C2 C3 C4 D2 D3 D4
Aesthetic	Ultra translucent
Sintered Density	6.0g/cm3
Bending Strength	700MPA to 1050MPA
Translucency	43% to 55%
Sintering Temperature	1500℃

Available Size

Open Cadcam System	Amann System	Zirkon zahn System
98x10mm	89×71×10mm	95*10mm
98x12mm	89×71×12mm	95*12mm
98x14mm	89×71×14mm	95*14mm
98x16mm	89×71×16mm	95*16mm
98x18mm	89×71×18mm	95*18mm
98x20mm	89×71×20mm	95*20mm
98x22mm	89×71×22mm	95*22mm
98x25mm	89×71×25mm	95*25mm

3.Product feature and application
Suitable for anterior and posterior restoration
A multilayer color gradient,strength gradient,translucency gradient,fracture gradient
High fracture toughness to resist chipping

4.sintering curve

4D Plus Multilayer Sintering Curve
Sintering step	Start Temperature(℃)	End Temperature(℃)	Time(Min)	Rate(℃/Min)
Step 1	20	100	27	3
Step 2	100	1000	150	6
Step 3	1000	1000	10	0
Step 4	1000	1500	100	5
Step 5	1500	1500	120	0
Step 6	1500	natural cooling20	/	/
