The latest product of Changsha honchon Technology Co., Ltd., a spindle-linked open dental engraving and milling machine, has high machine precision, high material utilization, and high customer praise.

Total power

1.5KW

Tool magazine Capacity

Equipment size

532*652*752MM

Weight

170KG

Rotating axis operating angle

A:360°,B:30°-90°

GET A QUOTE

Description

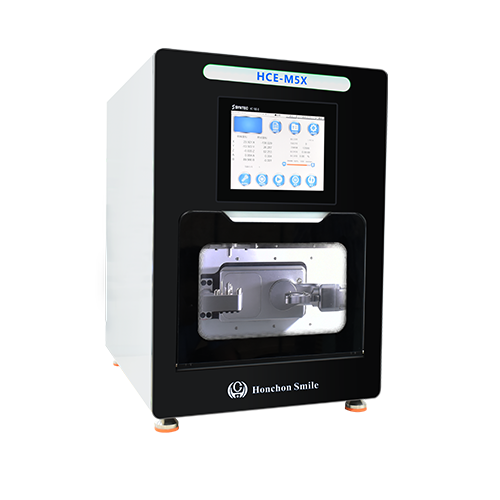

Dental Milling Machine for Dental Lab

After years of market research, Changsha Honchon Technology Co., Ltd. has launched this five-axis linkage engraving and milling machine specially built for dental clinics. After 2 years of global market testing, our engraving and milling machine has been well received by customers. This machine is famous for its high-precision milling and cost-effectiveness. Welcome to contact us!

Advantages

Five-axis linkage, can engrave and mill zirconia, PMMA, WAX
Seven optional milling burs of different sizes
Vertical milling for anterior teeth with better esthetic results
High accuracy and material utilization

Add WhatsApp Contact Now
Contact us by Email

Materials

Zirconia	Wax	PMMA
PEEK

Dental Restorations

Veneer	Crown	Implant
Bridge	Abutment	Inlay
Dental Mold	Complete denture	Orthodontic braces

Key Features

Large B-axis rotation: +35° to -91°, allows processing of large-angle implants.

90° Vertical Milling: Perfect for anterior teeth, creating fine textures and better esthetics.

20% Increased Material Utilisation: Thanks to C-Clamp Adapter.

Resume When Interrupted: Auto-resume to avoid waste and improve efficiency.

Specifications

Fields of application: Dry Machining
Materials: Zirconia, Wax, PMMA, PEEK, Composite
Indications: Veneer, Crown, Bridge, Inlay, Onlay, Implant, Abutment, Dental Mold, Complete denture, Orthodontic braces

Cast aluminum frame, steel housing, 5-axis movement, ± RGB LED lighting, 360° A-axis, +35° ~ -90° B-axis

Operating Temp: 10℃–35℃
Humidity: ≤80% (non-condensing)

Air: 6.0–7.5 bar (dry/oil-free)
Power: 220–230V, 800W

60,000 rpm, sealed design, 1500W max, 800W rated, stainless collet, pneumatic clamping

Tool magazine: 10 tools
Automatic tool change: Yes
Automatic disc change: No

FAQs

Q: How many milling burs come with the machine?
A: 7 in total – 4 for zirconia, 3 for PMMA.

Q: Does it auto change burs?
A: Yes.

Q: Auto change discs?
A: No.

Q: Motor type?
A: Servo motor, 5-axis system.

Q: Spindle power?
A: 500W.

Q: Max tilt angle?
A: 120°.

Q: Milling bur diameter?
A: 4.0mm.

Q: Material disc diameter?
A: 98mm.

Q: Time for single crown?
A: ~12 minutes.

Q: Air pressure needed?
A: ≥6.0 bar, oil-free and dry.

Q: Computer requirements?
A: i7/i9 CPU, 16–32GB RAM, NVIDIA GTX2060+, SSD, Win10/11, USB3.0. No Apple/AMD/Win8.
